D - Link DXS - 3400 - 24TC netwerk - switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Zwart DXS - 3400 - 24TC - Compridis

Move over image to zoom in Click on image to zoom in

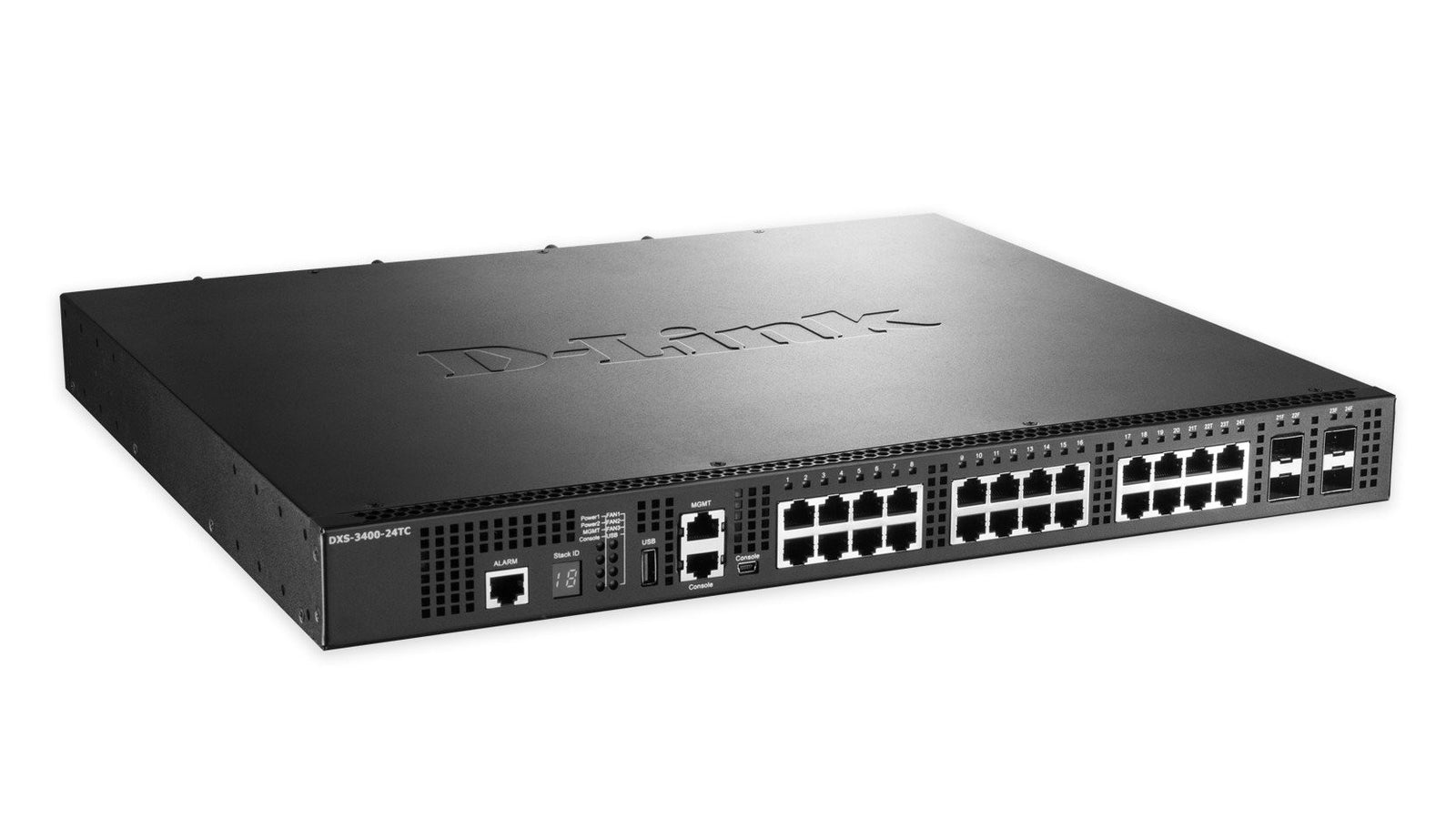

D-Link 20-Port 10GBASE-T/SFP+ and 10GBASE-T/SFP+ Combo Port Managed Switch DXS-3400-24TC

D-LINK SKU: 91031 | MPN: DXS-3400-24TC | EAN: 0790069423611

Variant

€2.252,00

Limited stock available • Shipped today

Free shipping & returns in the Netherlands and Belgium

Secure payment with PayPal, iDEAL or Credit Card

Pay later with Klarna

2-year warranty on new products

Dutch customer support

1-year warranty on refurbished products

Why choose Compridis Refurbished?

Minimum 85% battery capacity*

More than 30 checkpoints

100% technically tested

Professionally cleaned

More sustainable than buying new

✓Cable included

✓30-day free returns

✓1-year warranty included

* Applies to laptops and smartphones with an internal battery.

Management functions
Switch type	managed
Switch-laag	L3
Quality of Service (QoS)	Yes
Web-based management	Yes
ARP-inspectie	Yes
System event log	Yes
MIB-ondersteuning	RFC1065, RFC1066, RFC1155, RFC1156, RFC2578, RFC1212, RFC1213, RFC1215, RFC1493, RFC4188,RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576, RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636, RFC271, RFC1757, RFC2819, RFC2021, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635, RFC2668, RFC2674, RFC4363, RFC2863, RFC2618, RFC4022, RFC4113, RFC3298, RFC2620, RFC2925, RFC2465, RFC2466, RFC2737, RFC2787, RFC1724, RFC1850, RFC5132, RFC2932, RFC2934, RFC4292, RFC4293, RFC791, RFC768, RFC793, RFC792, RFC2463, RFC4443, RFC4884, RFC826, RFC1338, RFC1519, RFC2474, RFC3168, RFC3260, RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748, RFC2571, RFC2572, RFC2573, RFC2574, RFC3246, RFC3247, RFC1886, RFC1981, RFC2460, RFC2461, RFC4861, RFC2462, RFC4862, RFC2464, RFC2767, RFC3513, RFC4291, RFC2893, RFC4213, RFC3484, RFC2003, RFC1191, RFC5415
Gates & Interfaces
Number of basic switching RJ-45 Ethernet ports	20
Basic Switching RJ-45 Ethernet Port Type	Gigabit Ethernet (10/100/1000)
Number of Combo SFP ports	4
Number of module slots SPF+	4
Fiber optic connector	SFP+
console port	RJ-45
Number of USB 2.0 ports	1
Network
Network Standards	802.1AX
10G support	Yes
Copper Ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
port mirroring	Yes
full duplex	Yes
Data flow management	Yes
Connection aggregation	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
VLAN=ondersteuning	Yes
Virtual LAN functions	Private VLAN, Voice VLAN, MAC address-based VLAN, Port-based VLAN
number of VLANs	4094
Data-uitwisseling
MAC-adrestabel	48,000 entries
switching Capacity	480 Gbit/s
Shipping speed	357.12 Mpps
Number of queues	8
Jumbo Frames support	Yes
Jumbo frames	12000
Packet buffer memory	4 MB
Security
DHCP-functies	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Supported security algorithms	802.1x RADIUS
SSH / SSL support	Yes
Protection loop	Yes
BPDU filtering / protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Multicast-functies
Multicast-ondersteuning	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Design
Rack-montage	Yes
Stackable	Yes
Form factor	1U
Color of product	Black
number of fans	3 fan(s)
Safety	cUL, CB, CE, CCC, BSMI
Electromagnetic compatibility	CE, FCC A, C-Tick, VCCI, BSMI, CCC
Performance
Physical stacking (units)	4
Virtual stacking (units)	32
processor type	Yes
Energy
AC-ingangsspanning	100 - 240 V
AC-ingangsfrequentie	50 - 60 Hz
Flow	2 A
Power consumption (max)	159.8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Environmental requirements
Operating temperature (T-T)	-5 - 50 °C
Storage temperature	-40 - 70 °C
Relative humidity in operation (H-H)	10 - 95 percent
Humidity at storage	5 - 95 percent
Heat dissipation	557.94 BTU/h
Weight & dimensions
Width	441 mm
Depth	380 mm
Height	44 mm
Weight	6.65 kg
packing
Width of packaging	527 mm
Depth of packaging	575 mm
Height of packing	145 mm
Weight packaging	9.23 kg
Technical details
(Inner) shipping package height	17.8 cm
(Inner) shipping packaging width	54.5 cm
(Inner) shipping packaging length	59.5 cm
Net weight of transport packaging	7.53 kg
Products per (inner) shipping package	1 piece)
Pallet gross weight (air)	313.9 kg
Number of boxes per pallet (air)	28 piece(s)
Quantity per pallet (air)	28 piece(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	138.1 cm
Pallet gross weight (sea)	313.9 kg
Number of boxes per pallet (sea)	28 piece(s)
Products per pallet (sea)	28 piece(s)
Pallet height (sea)	138.1 cm
(Inner) shipping packaging weight	10.6 kg
Logistic data
Harmonized System Code (HS)	85176990

Frequently Asked Questions (FAQ)

Is deze switch geschikt voor beheer in een professioneel netwerk?

Ja, dit is een Managed L3-switch met webgebaseerd beheer en QoS. Dat maakt hem geschikt voor netwerken waar centraal beheer en prioriteitsverkeer belangrijk zijn.

Helpt deze switch bij het scheiden en bewaken van netwerkverkeer?

Ja, ARP-inspectie en systeemlogboeken zijn aanwezig. Dat helpt bij het controleren van verkeer en het sneller opsporen van netwerkproblemen.

Is deze switch handig voor omgevingen met veel apparaten en netwerkdiensten?

Ja, de uitgebreide MIB-ondersteuning past bij geavanceerd netwerkbeheer. Dat is nuttig voor monitoring en beheer in een grotere of complexere omgeving.

Wat betekent de 1U-formaat voor plaatsing in een rack?

Het 1U-formaat neemt weinig rackruimte in beslag, waardoor hij efficiënt te plaatsen is in een nette, compacte server- of netwerkkast.

Is dit een nieuwe switch of een refurbished model?

Dit model is als Silver - Refurbished aangeduid. Dat betekent dat het een gereviseerd product is, wat relevant is voor wie een refurbished oplossing zoekt.
