iiyama PROLITE TE7514MIS-B2AG Kiosk design 190.5 cm (75") LCD Wi-Fi 435 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7 TE7514MIS-B2AG

Name: iiyama PROLITE TE7514MIS-B2AG Kiosk design 190.5 cm (75") LCD Wi-Fi 435 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7 TE7514MIS-B2AG
Brand: IIYAMA
Price: 1637.0 EUR
Availability: InStock

IIYAMASKU:92322 4948570124039

Condition: Gold - Almost New

Variant

Price:

€1.637,00

Free shipping within Belgium

Stock:

Just yet 1 about

Number:

Share this product

Your payment data will be processed safely. We do not store credit card details and do not have access to your credit card details.

Display
Display diagonal	190.5 cm (75")
Display technology	LCD
Display resolution	3840 x 2160 pixels
Display brightness	435 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Panel type	VA
Touchscreen technology	PureTouch-IR
Number of simultaneous touchpoints	50
Multi-touch	Yes
Number of simultaneous touchpoints (Android)	40
Native aspect ratio	16
Response time	8 ms
Contrast ratio (typical)	5000
Contrast ratio (dynamic)	5000
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.43 x 0.43 mm
Active display area (W x H)	1650 x 928 mm
Display diagonal (metric)	189.3 cm
Horizontal scan range	30 - 135 kHz
Native refresh rate	60 Hz
Haze rate	25%
Surface hardness	7H
Glass thickness	3 mm
Ports & interfaces
HDMI ports quantity	5
DisplayPorts quantity	1
USB port	Yes
HDMI version	2.0
HDMI input ports quantity	1
HDMI output ports quantity	1
DisplayPorts in	1
DisplayPort version	2.1
USB ports quantity	6
USB connector type	USB Type-C
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN (RJ-45) ports	1
RS-232C	Yes
Infrared data port	Yes
Remote (IR) input	1
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	4
RMS rated power	54 W
Design
Product design	Kiosk design
Product colour	Black
Placement supported	Indoor
VESA mounting	Yes
Orientation	Horizontal
Screen shape	Flat
Panel mounting interface	800 x 400 mm
Bezel width (bottom)	4.1 cm
Bezel width (side)	1.65 cm
Bezel width (top)	1.65 cm
Bezel colour	Black
Anti-glare screen	Yes
Performance
Purpose	Universal
On Screen Display (OSD)	Yes
Number of OSD languages	14
On Screen Display (OSD) languages	Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days)	24/7
HDCP	Yes
Mean time between failures (MTBF)	50000 h
Power
Power consumption (typical)	209 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	197 kWh
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Computer system
Computer system	Yes
Built-in processor	Yes
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A76+Cortex-A55
Processor cores	4
Internal memory	8 GB
On-board graphics card model	ARM Mali-G610 MP4
Internal storage capacity	64 GB
Operating system installed	Android
Operating system version	13
Weight & dimensions
Display width	1709 mm
Display depth	86 mm
Display height	1031 mm
Display weight	51.5 kg
Width	1709 mm
Depth	86 mm
Height	1031 mm
Weight	51.5 kg
Packaging data
Package width	1863 mm
Package depth	225 mm
Package height	1148 mm
Package weight	60.8 kg
Packaging content
Remote control included	Yes
Batteries included	Yes
Stylus pen	Yes
Number of stylus pens	4
Cables included	AC, USB, HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, RoHS, WEEE, REACH
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
Sustainability certificates	ErP
Warranty period	5 year(s)
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Quick start guide	Yes
Bluetooth	Yes
Bluetooth version	5.0
Built-in microphone	Yes
Brightness	450 cd/m²
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type	Internal
Technical details
Audio in (mini jack)	Yes
Playback media	Y
User controls	general settings (input, volume, backlight), display settings (auto brightness, ECO, eye care, paper eye care, picture mode, brightness, contrast, saturation, sharpness, colour temp., advanced settings), audio settings (audio mode, volume, bass, treble, balance, mute), screen settings (pixel shift, auto light, ECR), application settings (network & internet, apps, storage, personal, Google, advanced, administration, system, about)

Standard orders (parcels up to 20 kg) placed before 15:00 are dispatched the same day.
Orders placed on working days before 08:00 and shipped to a residential address in the Netherlands or Belgium (parcels up to 20 kg) are often delivered the same evening.

Estimated delivery times do vary per country.

At Compridis you can always return your order for free!

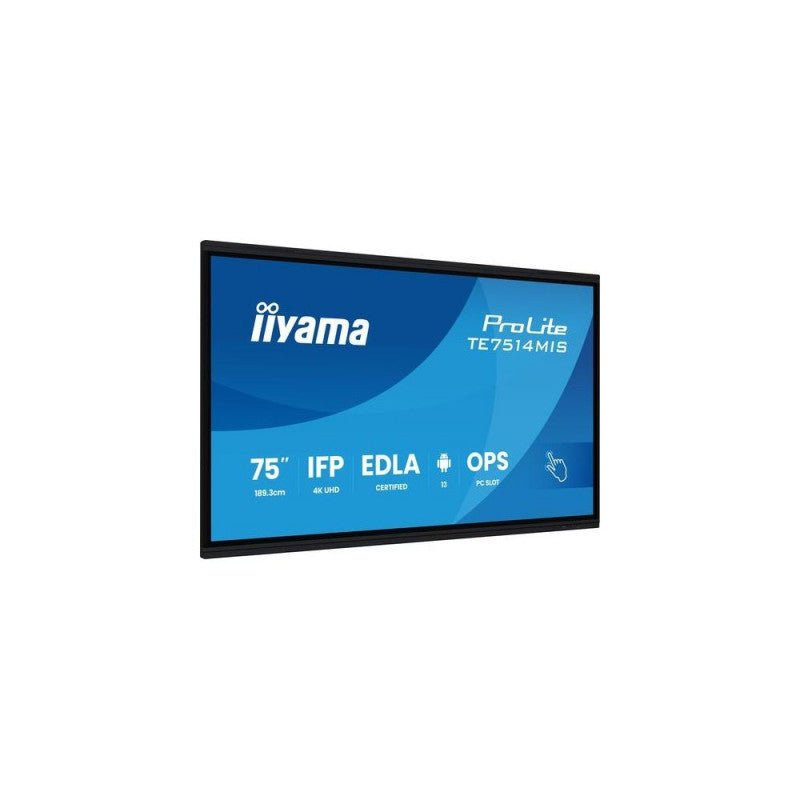

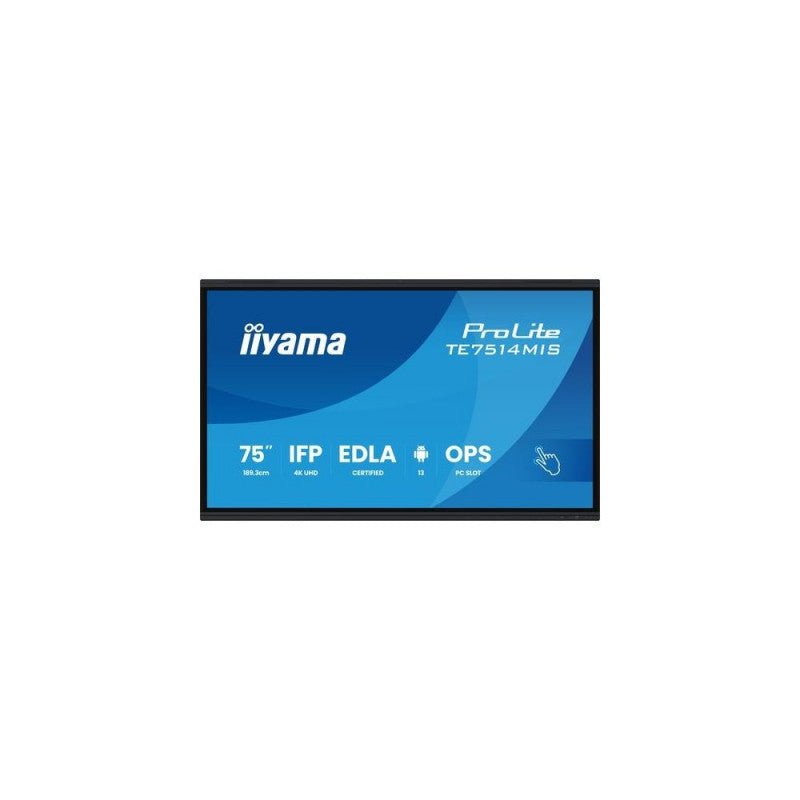

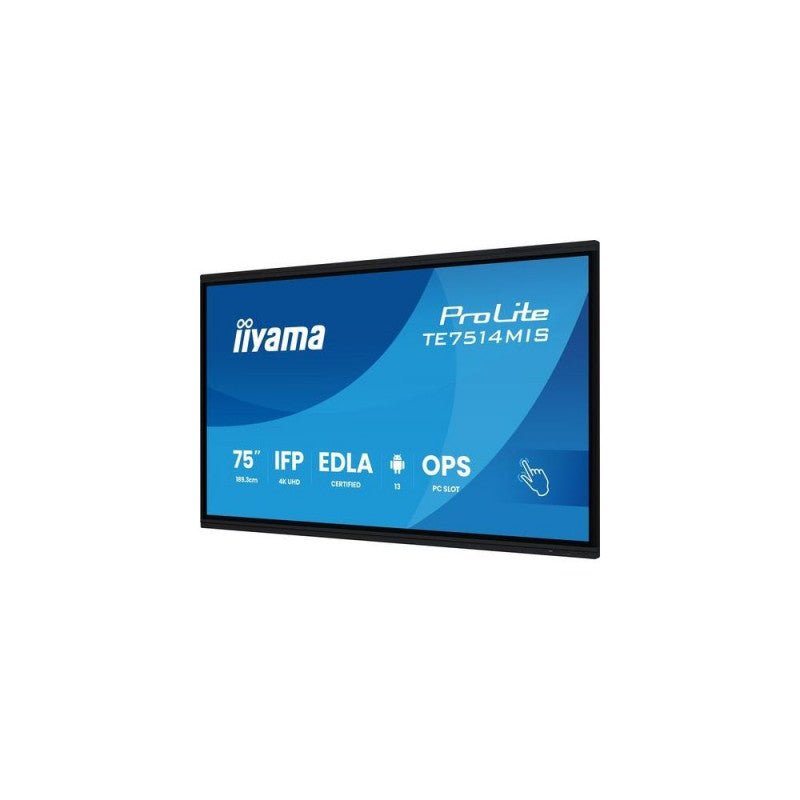

The TE7514MIS-B2AG is a visionary 4K UHD Google EDLA Certified interactive display that sets a new standard for ingenuity and performance. Crafted with precision, it features a Zero Airgap LCD screen that eradicates parallax, alongside the accurate PureTouch-IR+ with Palm Rejection, ensuring seamless interaction. Powered by iiWare 12E with Android 13 and equipped with WiFi connectivity, it effortlessly integrates into your ecosystem, supported by the iiyama (DMS) Device management platform. Experience unparalleled wireless sharing capabilities with the intuitive iiyama Share and EShare app, facilitating seamless brainstorming and effective collaboration within your enterprise or educational institution. With its innovative 4K Interface and customizable User Profiles , the TE7514MIS-B2AG offers a personalized experience, granting easy access to bespoke applications and Cloud Drives. Adapted to thrive in bustling hybrid environments, it becomes a tailored solution for diverse user needs, revolutionizing collaboration, communication, and engagement. Transforming modern workplaces, educational realms, and dynamic meeting spaces, this display emerges as an essential cornerstone, nurturing progress and connectivity beyond boundaries.
